Manufacturing test

Home Services

Our Services

“'-Metallurgical Testing typically uses microscopy to provide important information about the structure and properties of metal and alloy samples. These services are also called Metallography Evaluation, Metallographic Examination and Metallurgical Analysis.'-AES offers Microscopic/Macroscopic Examination By Inverted Metallurgical Microscope with image analyzer software.'-AES provide Phase Analysis, Grain size measurement, Inclusion Rate, Macro/Micro Examination. Also offers micro examination for corrosion Evaluation.'Test method as per'-ASM Vol.9,ASTM E-407,IS 3600-9 ,ASME SEC IX For Micro Analysis. '-Macro Analysis As per ASTM E 381, ASM Vol 9, ASME SEC IX,AWS D1.1, EN ISO 17639,IS 7310-1 '-Grain size Measurement As Per ASTM E 112.'-Inclusion Rating As Per ASTM E 45, IS 4163”
Metallurgical Testing
VIEW DETAILS
“ -'AES offers the Hardness Test machine determines Hardness Value of all types of metal materials.'-Rockwell hardness machine covers HRA , HRB, HRC.'-Vickers Cum Brinell Hardness Machine Covers HBW (31.25,62.5, 187.5, 250) & HV (5, 10, 20 ,30) Hardness ScaleTest method as per'-'- ASTM E-18, IS 1586-1 , ISO 6508-1 For Rockwell Hardness Test, '-ASTM E-10, IS 1500, ISO 6506-1 For Brinell Hardness '-ASTM E 92, IS 1501 , ISO 6507-1 For Vickers Hardness.”
Hardness Testing
VIEW DETAILS
“'-AES offers the Charpy Impact Test determines the toughness or impact strength of the material in the presence of a flaw or notch and fast loading conditions. '-This destructive test involves fracturing notched impact test specimens at a series of temperatures with a swinging pendulum. The amount of energy absorbed by the material during fracture is measured. Charpy V notch or U notch test specimens are used.'-For reliability and fast turnaround, all types of machining & notches for specimens are prepared to specification in our own Machine Shop.Instrument Detail :Impact Testing MachineTest method As Per ASTM E 23 ,ISO 148-1”
Impact Testing Machine
VIEW DETAILS
“-AES offers tensile/compression testing services for metal materials. Machine is used to test specimens in all sizes, from small fasteners to large tubing, Bar & Weld Coupon with Load Capacity 0-1000KN (100 Ton).'-For reliability and fast turnaround, all types of tensile/bend test specimens are prepared to specification in our own Machine Shop.Instrument Detail :Universal Testing Machine 0-1000KN (100 Ton).'-Testing As per ASTM A 370, ASTM E-8, IS 1608, EN-ISO 6892,ASME Sec IX, AWS D1.1 ,EN 15614-1, IS 1367-3, ISO 898-1, ISO 5178, ISO 4136, IS 3600 For Tensile Test.'-ASTM A 370, ASTM E 290, ASME Sec IX, IS 1599, IS 2329 ,ASTM E 190, AWS D1.1 , IS 1786 D 1.1, API 1104 For Bend Test & IS I786 For Bend Re-bend Test.'-ASTM A 370, API 5L, IS 1239-1 for Flattening Test,'-ASTM A370,IS 2335,ASTM A 1016 For Flairing Test”
Tensile testing
VIEW DETAILS

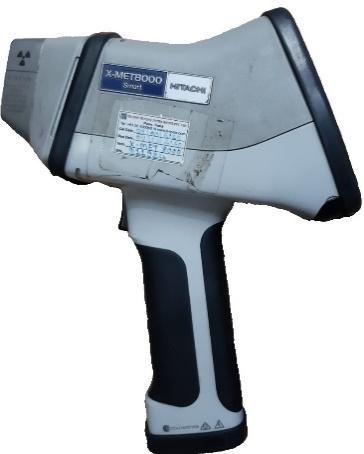

Aadhya Engineering Services offers expertise in the ChemicalAnalysis of Metals and has a fully equipped analytical chemicalTesting lab to carry out tests of most elements in the periodic table.-Chemical analysis services provide chemical composition & materialidentification of industrial metal materials.Instrument Detail :'- Optical Emmission Spectrometer (e, Cu, Ni, Al, Sn, Pb Base Channel)- Onsite Portable Spectoscopy BY OES- XRF Analyser (PMI Testing-With Light Elemental Analysis)-Wet Analysis '-Test Method-ASTM E 1251, ASTM E415, IS 8811, ASTM E 1086, IS 9879, BSEN 15079,IS 228 , ASTM E 1086
Chemical Analysis
VIEW DETAILS
“-Aadhya Engineering Services offers expertise in the ChemicalAnalysis of Metals and has a fully equipped analytical chemicalTesting lab to carry out tests of most elements in the periodic table.-Chemical analysis services provide chemical composition & materialidentification of industrial metal materials.Instrument Detail :'- Optical Emmission Spectrometer (e, Cu, Ni, Al, Sn, Pb Base Channel)- Onsite Portable Spectoscopy BY OES- XRF Analyser (PMI Testing-With Light Elemental Analysis)-Wet Analysis '-Test Method-ASTM E 1251, ASTM E415, IS 8811, ASTM E 1086, IS 9879, BSEN 15079,IS 228 , ASTM E 1086 ”
XRF Analyser
VIEW DETAILS

Filter using tags

“'-Metallurgical Testing typically uses microscopy to provide important information about the structure and properties of metal and alloy samples. These services are also called Metallography Evaluation, Metallographic Examination and Metallurgical Analysis.'-AES offers Microscopic/Macroscopic Examination By Inverted Metallurgical Microscope with image analyzer software.'-AES provide Phase Analysis, Grain size measurement, Inclusion Rate, Macro/Micro Examination. Also offers micro examination for corrosion Evaluation.'Test method as per'-ASM Vol.9,ASTM E-407,IS 3600-9 ,ASME SEC IX For Micro Analysis. '-Macro Analysis As per ASTM E 381, ASM Vol 9, ASME SEC IX,AWS D1.1, EN ISO 17639,IS 7310-1 '-Grain size Measurement As Per ASTM E 112.'-Inclusion Rating As Per ASTM E 45, IS 4163”
View Details
Metallurgical Testing
“ -'AES offers the Hardness Test machine determines Hardness Value of all types of metal materials.'-Rockwell hardness machine covers HRA , HRB, HRC.'-Vickers Cum Brinell Hardness Machine Covers HBW (31.25,62.5, 187.5, 250) & HV (5, 10, 20 ,30) Hardness ScaleTest method as per'-'- ASTM E-18, IS 1586-1 , ISO 6508-1 For Rockwell Hardness Test, '-ASTM E-10, IS 1500, ISO 6506-1 For Brinell Hardness '-ASTM E 92, IS 1501 , ISO 6507-1 For Vickers Hardness.”
View Details
Hardness Testing
“'-AES offers the Charpy Impact Test determines the toughness or impact strength of the material in the presence of a flaw or notch and fast loading conditions. '-This destructive test involves fracturing notched impact test specimens at a series of temperatures with a swinging pendulum. The amount of energy absorbed by the material during fracture is measured. Charpy V notch or U notch test specimens are used.'-For reliability and fast turnaround, all types of machining & notches for specimens are prepared to specification in our own Machine Shop.Instrument Detail :Impact Testing MachineTest method As Per ASTM E 23 ,ISO 148-1”
View Details
Impact Testing Machine
“-AES offers tensile/compression testing services for metal materials. Machine is used to test specimens in all sizes, from small fasteners to large tubing, Bar & Weld Coupon with Load Capacity 0-1000KN (100 Ton).'-For reliability and fast turnaround, all types of tensile/bend test specimens are prepared to specification in our own Machine Shop.Instrument Detail :Universal Testing Machine 0-1000KN (100 Ton).'-Testing As per ASTM A 370, ASTM E-8, IS 1608, EN-ISO 6892,ASME Sec IX, AWS D1.1 ,EN 15614-1, IS 1367-3, ISO 898-1, ISO 5178, ISO 4136, IS 3600 For Tensile Test.'-ASTM A 370, ASTM E 290, ASME Sec IX, IS 1599, IS 2329 ,ASTM E 190, AWS D1.1 , IS 1786 D 1.1, API 1104 For Bend Test & IS I786 For Bend Re-bend Test.'-ASTM A 370, API 5L, IS 1239-1 for Flattening Test,'-ASTM A370,IS 2335,ASTM A 1016 For Flairing Test”
View Details
Tensile testing
Aadhya Engineering Services offers expertise in the ChemicalAnalysis of Metals and has a fully equipped analytical chemicalTesting lab to carry out tests of most elements in the periodic table.-Chemical analysis services provide chemical composition & materialidentification of industrial metal materials.Instrument Detail :'- Optical Emmission Spectrometer (e, Cu, Ni, Al, Sn, Pb Base Channel)- Onsite Portable Spectoscopy BY OES- XRF Analyser (PMI Testing-With Light Elemental Analysis)-Wet Analysis '-Test Method-ASTM E 1251, ASTM E415, IS 8811, ASTM E 1086, IS 9879, BSEN 15079,IS 228 , ASTM E 1086
View Details
Chemical Analysis
“-Aadhya Engineering Services offers expertise in the ChemicalAnalysis of Metals and has a fully equipped analytical chemicalTesting lab to carry out tests of most elements in the periodic table.-Chemical analysis services provide chemical composition & materialidentification of industrial metal materials.Instrument Detail :'- Optical Emmission Spectrometer (e, Cu, Ni, Al, Sn, Pb Base Channel)- Onsite Portable Spectoscopy BY OES- XRF Analyser (PMI Testing-With Light Elemental Analysis)-Wet Analysis '-Test Method-ASTM E 1251, ASTM E415, IS 8811, ASTM E 1086, IS 9879, BSEN 15079,IS 228 , ASTM E 1086 ”
View Details
XRF Analyser
